rust_xlsxwriter

The rust_xlsxwriter library is a Rust crate for writing Excel files in the xlsx format.

The rust_xlsxwriter crate can be used to write text, numbers, dates, and formulas to multiple worksheets in a new Excel 2007+ .xlsx file. It has a focus on performance and fidelity with the file format created by Excel. It cannot be used to modify an existing file.

Example

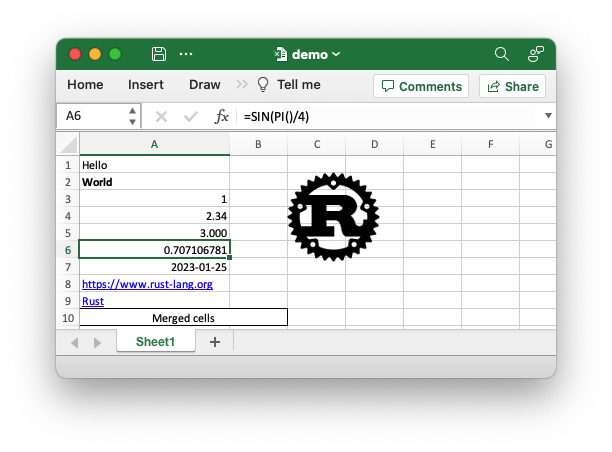

Sample code to generate the Excel file shown above.

use rust_xlsxwriter::*;

fn main() -> Result<(), XlsxError> {
    // Create a new Excel file object.
    let mut workbook = Workbook::new();

    // Create some formats to use in the worksheet.
    let bold_format = Format::new().set_bold();
    let decimal_format = Format::new().set_num_format("0.000");
    let date_format = Format::new().set_num_format("yyyy-mm-dd");
    let merge_format = Format::new()
        .set_border(FormatBorder::Thin)
        .set_align(FormatAlign::Center);

    // Add a worksheet to the workbook.
    let worksheet = workbook.add_worksheet();

    // Set the column width for clarity.
    worksheet.set_column_width(0, 22)?;

    // Write a string without formatting.
    worksheet.write(0, 0, "Hello")?;

    // Write a string with the bold format defined above.
    worksheet.write_with_format(1, 0, "World", &bold_format)?;

    // Write some numbers.
    worksheet.write(2, 0, 1)?;
    worksheet.write(3, 0, 2.34)?;

    // Write a number with formatting.
    worksheet.write_with_format(4, 0, 3.00, &decimal_format)?;

    // Write a formula.
    worksheet.write(5, 0, Formula::new("=SIN(PI()/4)"))?;

    // Write a date.
    let date = ExcelDateTime::from_ymd(2023, 1, 25)?;
    worksheet.write_with_format(6, 0, &date, &date_format)?;

    // Write some links.
    worksheet.write(7, 0, Url::new("https://www.rust-lang.org"))?;
    worksheet.write(8, 0, Url::new("https://www.rust-lang.org").set_text("Rust"))?;

    // Write some merged cells.
    worksheet.merge_range(9, 0, 9, 1, "Merged cells", &merge_format)?;

    // Insert an image.
    let image = Image::new("examples/rust_logo.png")?;
    worksheet.insert_image(1, 2, &image)?;

    // Save the file to disk.
    workbook.save("demo.xlsx")?;

    Ok(())
}

rust_xlsxwriter is a rewrite of the Python XlsxWriter library in Rust by the same author, with additional Rust-like features and APIs. The supported features are:

• Support for writing all basic Excel data types.
• Full cell formatting support.
• Formula support, including new Excel 365 dynamic functions.
• Charts.
• Hyperlink support.
• Page/Printing Setup support.
• Merged ranges.
• Conditional formatting.
• Data validation.
• Cell Notes.
• Textboxes.
• Checkboxes.
• Sparklines.
• Worksheet PNG/JPEG/GIF/BMP images.
• Rich multi-format strings.
• Outline groupings.
• Defined names.
• Autofilters.
• Worksheet Tables.
• Serde serialization support.
• Support for macros.
• Memory optimization mode for writing large files.

Motivation

The rust_xlsxwriter crate was designed and implemented based around the following design considerations:

• Fidelity with the Excel file format. The library uses its own XML writer module in order to be as close as possible to the format created by Excel.
• Performance. The library is designed to be as fast and efficient as possible. It also supports a constant memory mode for writing large files, which keeps memory usage to a minimum.
• Comprehensive documentation. In addition to the API documentation, the library has extensive user guides, a tutorial, and a cookbook of examples.
• Feature richness. The library supports a wide range of Excel features, including charts, conditional formatting, data validation, rich text, hyperlinks, images, and even sparklines.
• Write only. The library only supports writing Excel files, and not reading or modifying them.
• A family of libraries. The rust_xlsxwriter library has sister libraries written in C (libxlsxwriter), Python (XlsxWriter), and Perl (Excel::Writer::XLSX), by the same author. Bug fixes and improvements in one get transferred to the others.
• No FAQ section. The Rust implementation seeks to avoid some of the required workarounds and API mistakes of the other language variants.

Performance

As mentioned above the rust_xlsxwriter library has sister libraries written natively in C, Python, and Perl.

A relative performance comparison between the C, Rust, and Python versions is shown below. The Perl performance is similar to the Python library, so it has been omitted.

Library	Relative to C	Relative to Rust
C/libxlsxwriter	1.00
rust_xlsxwriter	1.14	1.00
Python/XlsxWriter	4.36	3.81

The C version is the fastest: it is 1.14 times faster than the Rust version and 4.36 times faster than the Python version. The Rust version is 3.81 times faster than the Python version.

See the Performance section for more details.

Crate Features

The following is a list of the features supported by the rust_xlsxwriter crate.

Default

• default: This includes all the standard functionality. The only dependency is the zip crate.

rust_xlsxwriter can be added to a Rust project as follows:

cargo add rust_xlsxwriter

Optional features

These are all off by default.

• constant_memory: Keeps memory usage to a minimum when writing large files. See Constant Memory Mode.
• serde: Adds support for Serde serialization.
• chrono: Adds support for Chrono date/time types to the API. See IntoExcelDateTime.
• jiff: Adds support for Jiff date/time types to the API. See IntoExcelDateTime.
• zlib: Improves performance of the zlib crate but adds a dependency on zlib and a C compiler. This can be up to 1.5 times faster for large files.
• polars: Adds support for mapping between PolarsError and rust_xlsxwriter::XlsxError to make code that handles both types of errors easier to write. See also polars_excel_writer.
• wasm: Adds a dependency on js-sys and wasm-bindgen to allow compilation for wasm/JavaScript targets. See also wasm-xlsxwriter.
• rust_decimal: Adds support for writing the rust_decimal Decimal type with Worksheet::write(), provided it can be represented by f64.
• ryu: Adds a dependency on ryu. This speeds up writing numeric worksheet cells for large data files. It gives a performance boost for more than 300,000 numeric cells and can be up to 30% faster than the default number formatting for 5,000,000 numeric cells.

A rust_xlsxwriter feature can be enabled in your Cargo.toml file as follows:

cargo add rust_xlsxwriter -F constant_memory

Release notes

Recent changes:

• Added support for Jiff date/time civil types.
• Added worksheet outline groupings.
• Added worksheet background images.

See the full Release Notes and Changelog.

See also

• User Guide: Working with the rust_xlsxwriter library.
  • Getting started: A simple getting started guide on how to use rust_xlsxwriter in a project and write a Hello World example.
  • Tutorial: A larger example of using rust_xlsxwriter to write some expense data to a spreadsheet.
  • Cookbook.
• The rust_xlsxwriter crate.
• The rust_xlsxwriter API docs at docs.rs.
• The rust_xlsxwriter repository.
• Roadmap of planned features.
