MoonBit WebView

MoonBit bindings for webview, a tiny cross-platform library for creating modern web-based desktop applications using HTML, CSS, and JavaScript.

✨ Features

  • 🚀 Lightweight: Minimal overhead with native performance
  • 🎨 Modern UI: Build desktop apps using web technologies
  • 🔄 Cross-platform: Works on Windows, macOS, and Linux
  • 📱 Responsive: Native window management and controls
  • 🔌 JavaScript Bridge: Seamless communication between MoonBit and web content
  • 🛡️ Type-safe: Full MoonBit type safety for WebView operations

⚠️ Note: This project is currently in active development. APIs may change in future releases.

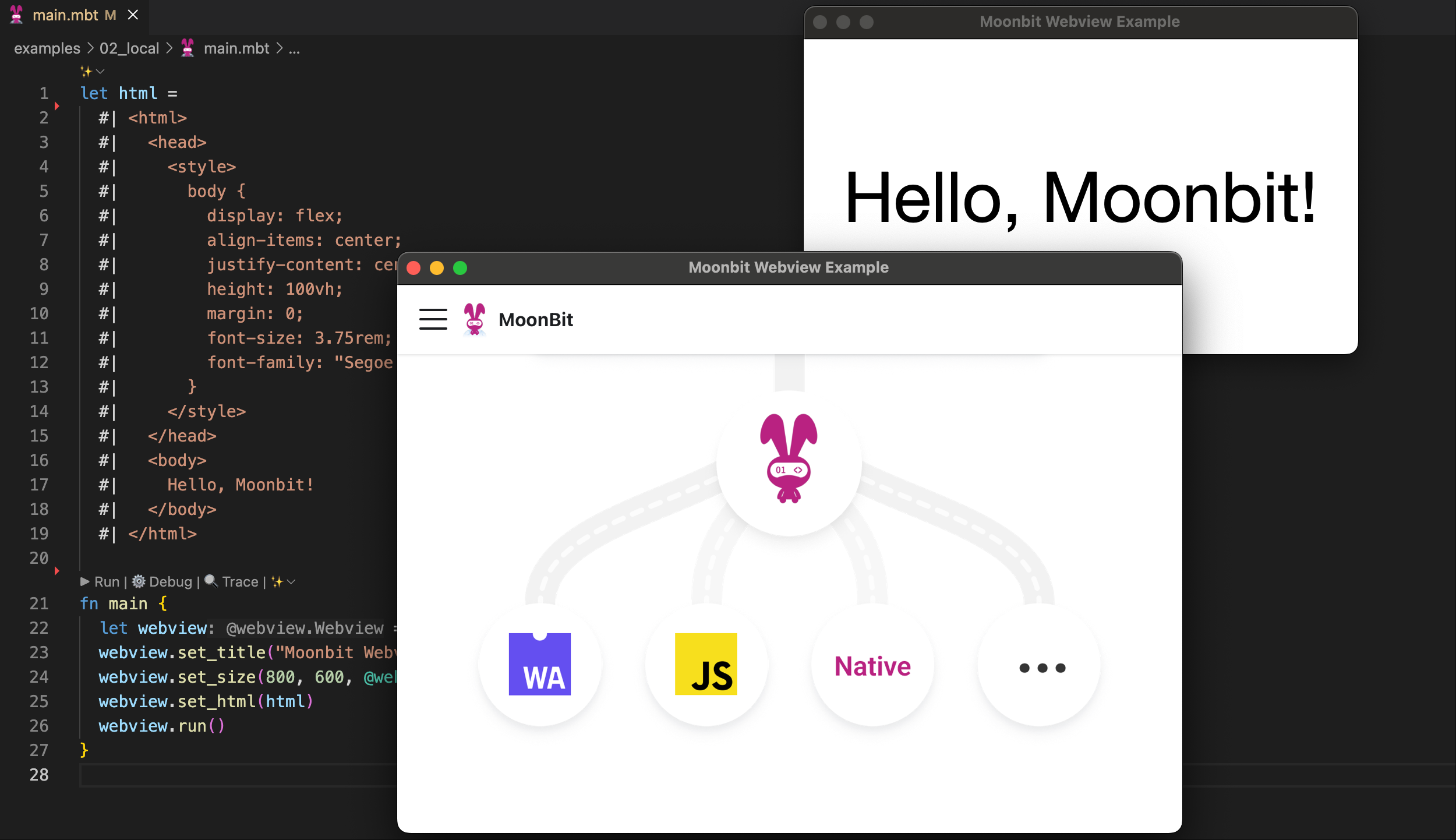

moonbit webview demo

📦 Installation

Add justjavac/webview to your project dependencies:

moon update
moon add justjavac/webview

⚙️ Configuration

Configure your moon.pkg file to link with the webview library:

options(
  "is-main": true,
  link: {
    "native": {
      "cc-flags": "-fwrapv -fsanitize=address -fsanitize=undefined",
      "cc-link-flags": "-L .mooncakes/justjavac/webview/lib -lwebview",
    },
  },
)

🔧 Environment Setup

macOS

Set the dynamic library path:

export DYLD_LIBRARY_PATH="$(pwd)/.mooncakes/justjavac/webview/lib"

Windows

Command Prompt

set "MOONWEB_LIB=%CD%\.mooncakes\justjavac\webview\lib"
set _CL_=/link /LIBPATH:"%MOONWEB_LIB%" webview.lib /DEBUG
set "PATH=%PATH%;%MOONWEB_LIB%"

Note: This Windows path handling uses an absolute library path, similar to the approach used in CI workflow (.github/workflows/ci.yml) to ensure library paths resolve correctly even when the working directory contains spaces.

PowerShell

$libPath = Join-Path -Path (Get-Location) -ChildPath ".mooncakes\justjavac\webview\lib"
$env:_CL_ = "/link /LIBPATH:`"$libPath`" webview.lib /DEBUG"
$env:PATH = "$env:PATH;$libPath"

Linux

export LD_LIBRARY_PATH="$(pwd)/.mooncakes/justjavac/webview/lib:$LD_LIBRARY_PATH"

🚀 Quick Start

Here's a simple example to get you started:

let html =
  #| <html>
  #|   <head>
  #|     <title>MoonBit WebView</title>
  #|     <style>
  #|       body {
  #|         font-family: system-ui, -apple-system, sans-serif;
  #|         display: flex;
  #|         justify-content: center;
  #|         align-items: center;
  #|         height: 100vh;
  #|         margin: 0;
  #|         background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
  #|         color: white;
  #|       }
  #|       h1 { text-align: center; font-size: 2.5em; }
  #|     </style>
  #|   </head>
  #|   <body>
  #|     <h1>Hello, MoonBit WebView! 🌙</h1>
  #|   </body>
  #| </html>

fn main {
  @webview.Webview::new(debug=1)
  ..set_title("MoonBit WebView Example")
  ..set_size(800, 600, @webview.SizeHint::None)
  ..set_html(html)
  .run()
}

Command Bridge

For structured JS <-> MoonBit communication, use CommandBridge on top of the existing low-level bindings.

  • JS -> MoonBit: window.MoonBitBridge.send(name, payload)
  • MoonBit -> JS: bridge.send(name, payload) and window.MoonBitBridge.onCommand(listener)

Notes:

  • window.MoonBitBridge.send(...) is request/reply. It returns a Promise<CommandResponse>.
  • CommandResponse.status is "ok" or "error".
  • On success, CommandResponse.payload contains the handler result.
  • On failure, CommandResponse.error contains the error message.
  • Use bridge.handle_result(...) if a MoonBit handler should explicitly return Result[Reply, String] instead of always succeeding.
  • bridge.send(...) is fire-and-forget. It pushes a Command event into the page; it does not wait for a JavaScript reply.
  • MoonBit -> JS delivery is scheduled onto the webview event loop internally, so bridge.send(...) is safe to call off the UI thread.
  • binding_name must be unique per Webview. CommandBridge::new(...) aborts immediately if that internal binding name is already in use.
  • Call bridge.destroy() if you want to unregister the bridge binding and reuse the same binding_name on the same Webview.
  • If you want raw JSON handling on the MoonBit side, register the handler with Json as the payload type.
struct SumPayload {
  left : Int
  right : Int
} derive(ToJson, FromJson)

struct SumReply {
  total : Int
} derive(ToJson, FromJson)

struct NoticePayload {
  message : String
} derive(ToJson, FromJson)

fn main {
  let webview = @webview.Webview::new(debug=1)
  let bridge = @webview.CommandBridge::new(webview)
  bridge.handle_result("sum", fn(payload : SumPayload) {
    let reply =
      if payload.right < 0 {
        Err("right must be non-negative")
      } else {
        Ok(SumReply::{ total: payload.left + payload.right })
      }
    bridge.send("notice", NoticePayload::{
      message: "MoonBit handled sum",
    })
    reply
  })
  webview.set_html(
    #| <script>
    #|   window.MoonBitBridge.onCommand((command) => {
    #|     if (command.name === "notice") {
    #|       console.log("MoonBit -> JS", command.payload);
    #|     }
    #|   });
    #|   window.MoonBitBridge
    #|     .send("sum", { left: 1, right: 2 })
    #|     .then((response) => {
    #|       if (response.status === "ok") {
    #|         console.log("MoonBit reply", response.payload);
    #|       } else {
    #|         console.error("MoonBit command error", response.error);
    #|       }
    #|     })
    #|     .catch(console.error);
    #| </script>,
  )
  webview.run()
}

Plugin System

For module-level JS APIs, install Plugin modules on a Webview. The default plugin runtime is built on top of CommandBridge and exposed as window.MoonBitPlugins.

  • A MoonBit module exports a Plugin.
  • The main program usually installs that plugin with webview.install_plugin(...).
  • Plugins can define native install/destroy hooks.
  • JavaScript calls the installed API through window.MoonBitPlugins.<plugin>.<api>(payload) or window.MoonBitPlugins["@@call"](plugin, api, payload).
  • Plugin JS calls resolve to the same CommandResponse shape returned by CommandBridge.send(...), with status, payload, and error.
  • JavaScript subscribes to plugin events through window.MoonBitPlugins.<plugin>["@@on"](listener) or window.MoonBitPlugins.<plugin>["@@onEvent"](name, listener).
struct SumPayload {
  left : Int
  right : Int
} derive(ToJson, FromJson)

struct SumReply {
  total : Int
} derive(ToJson, FromJson)

struct NoticePayload {
  message : String
} derive(ToJson, FromJson)

pub fn math_plugin() -> @webview.Plugin {
  @webview.Plugin::new(
    "math",
    fn(plugin) {
      plugin.command("sum", fn(payload : SumPayload) {
        let reply = SumReply::{ total: payload.left + payload.right }
        plugin.emit("computed", NoticePayload::{
          message: "MoonBit computed " + reply.total.to_string(),
        })
        reply
      })
    },
    on_install=fn(plugin) {
      // Native setup can happen here.
      let _ = plugin.name()
    },
    on_destroy=fn(plugin) {
      // Native cleanup can happen here.
      let _ = plugin.name()
    },
  )
}

fn main {
  let webview = @webview.Webview::new(debug=1)
  webview.install_plugin(math_plugin())
  webview.set_html(
    #| <script>
    #|   window.MoonBitPlugins.math["@@onEvent"]("computed", (event) => {
    #|     console.log("plugin event", event);
    #|   });
    #|   window.MoonBitPlugins.math
    #|     .sum({ left: 20, right: 22 })
    #|     .then((response) => {
    #|       if (response.status === "ok") {
    #|         console.log("plugin payload", response.payload);
    #|         return;
    #|       }
    #|       console.error("plugin error", response.error);
    #|     })
    #|     .catch(console.error);
    #| </script>,
  )
  webview.run()
}

Notes:

  • webview.install_plugin(...) uses a default PluginHost under window.MoonBitPlugins.
  • Use webview.emit_plugin(plugin, name, payload) when the main program, rather than a plugin context, needs to push a plugin-scoped event into JavaScript.
  • webview.plugin_host() returns that default host if you need direct access to PluginHost or the underlying CommandBridge.
  • You can still construct PluginHost::new(...) directly when you need custom JS namespace or bridge names.
  • Reusable plugins can live in separate MoonBit modules such as plugins/fs/README.md.
  • Plugin modules can add utility APIs beyond handle-based commands. For example, the fs plugin exposes fs.resolvePath({ path }) so JavaScript can ask the native backend for the platform-specific absolute path.
  • Plugin cleanup is attached to the Webview lifecycle, so on_destroy hooks run during normal webview.run() / webview.destroy().
  • Install a plugin before loading content if you want the JS API to exist on the first page load.
  • Plugin names and API names starting with @@ are reserved for framework/internal use.
  • Special JavaScript property names such as __proto__, prototype, and constructor are also reserved for plugin names and API names.
  • The JS host uses reserved helper keys @@call, @@has, @@ensurePlugin, @@defineApi, @@on, @@onEvent, and @@emit.
  • Duplicate plugin names or duplicate APIs inside the same plugin abort during installation.

📚 Examples

This repository includes several examples in the examples/ directory:

  • 01_run - Basic window creation
  • 02_local - Loading local HTML files
  • 03_remote - Loading remote web pages
  • 04_user_agent - Custom user agent configuration
  • 05_alert - JavaScript alerts and dialogs
  • 06_onload - Handling page load events
  • 07_inject_js - Injecting JavaScript code
  • 08_eval - Evaluating JavaScript expressions
  • 09_dispatch - Event dispatching
  • 10_bind - Binding MoonBit functions to JavaScript
  • 11_multi_window - Multiple window management
  • 12_embed - Embedding resources
  • 13_todo - Complete todo application
  • 14_beforeunload - Handling window close events
  • 15_close - Window close management
  • 16_command - Structured JS <-> MoonBit command bridge
  • 17_plugin - Generic plugin modules exposed as JavaScript APIs
  • 18_plugin_fs - Filesystem plugin workbench with absolute-path resolution

Run any example:

moon -C examples run <example_name> --target native

🛠️ Development

Prerequisites

  • MoonBit toolchain
  • CMake 3.15 or higher
  • Ninja build system
  • C/C++ compiler (GCC, Clang, or MSVC)

Build from Source

  1. Clone and build dependencies:

    cmake -G Ninja -B build -S . -D CMAKE_BUILD_TYPE=Release
cmake --build build

  2. Set up environment variables:

    # macOS
export DYLD_LIBRARY_PATH="$(pwd)/lib"

# Windows (Command Prompt)
set "MOONWEB_LIB=%CD%\lib"
set _CL_=/link /LIBPATH:"%MOONWEB_LIB%" webview.lib /DEBUG
set "PATH=%PATH%;%MOONWEB_LIB%"

# Windows (PowerShell)
$libPath = Join-Path -Path (Get-Location) -ChildPath "lib"
$env:_CL_ = "/link /LIBPATH:`"$libPath`" webview.lib /DEBUG"
$env:PATH = "$env:PATH;$libPath"

# Linux
export LD_LIBRARY_PATH="$(pwd)/lib:$LD_LIBRARY_PATH"

  3. Install dependencies and run examples:

    moon update
# Note: Installing with `moon install` without arguments is deprecated.
# If you need a specific package, use `moon install <package>`.
moon -C examples run 02_local --target native

Running Tests

moon test --target native

📄 License

MIT License © justjavac

Made with ❤️ and MoonBit
